圆形玻璃钢冷却塔

设计特点

1、塔体受力结构:为钢结构,增设了晶格式多向斜撑整塔钢性好,运行最大振动幅0.15mm,钢结构采取了加强防腐措施,镀锌后涂环氧青漆或氯磺化聚乙烯二道。

2、围护结构:为聚酯玻璃钢,质轻高强耐腐蚀,抗老化。

3、风筒:为动能回收型,气流组织合理、效率高。

4、风机:机翼型环氧玻璃钢叶片,风量大、效率高、噪音低、耐腐蚀。



Design Features

1Suspension structure: stainless steel structure, painted with epoxy-(coal)tar or chlorinated polyethylene after plated with zinc.

2Enclosure structure: polyester glass steel, with light weight, high strength corrosion resistant, anti aging, long service life.

3Air ductkinetic energy recovery type. reasonable air distribution with high efficiency.

4Fan: Aeroflot epoxy-(coal)tar blade, feature big air flow, high efficiency. low noise and corrosion resistance.

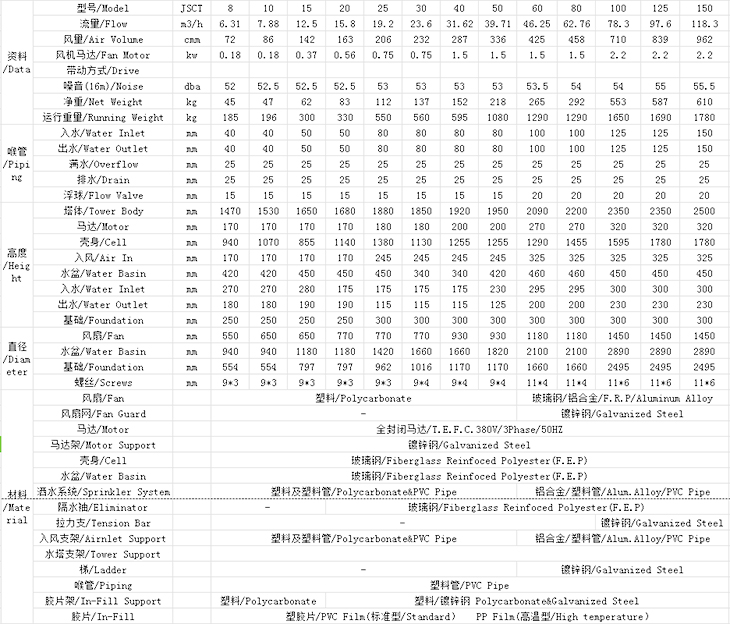

产品规格及技术参数如有更改,恕不另行通知

Product specifications and technical parameters are subject to change without notice
*设计工况:进水温度T1=37℃,出水温度T2=32℃,水温降TS=5℃

*湿球温度WBT=27℃,大气压力P=99400Pa

*Design condition:water in temperature T1=37℃,water out temperature T2=32℃,water in/out temperature difference TS=5℃

*Wet ball temperature WBT=27℃,Air pressure P=99400Pa

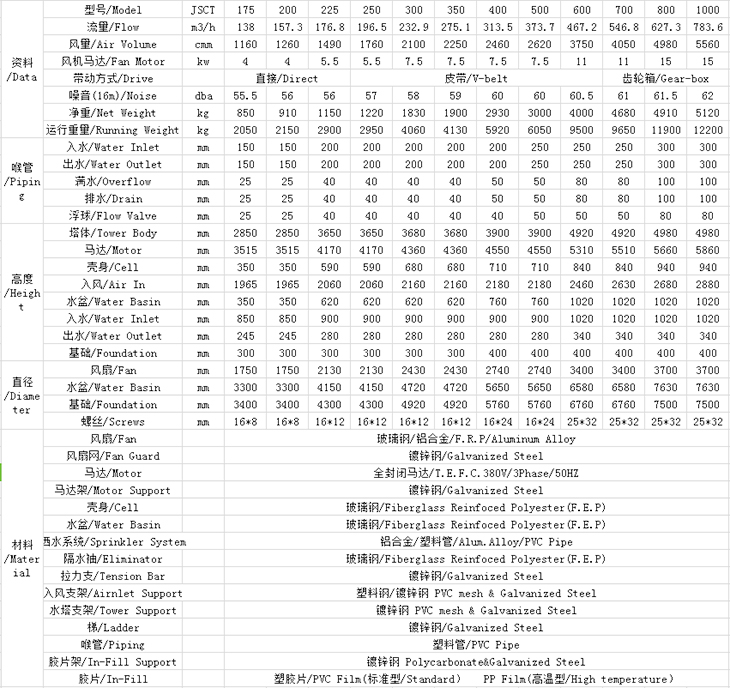

产品规格及技术参数如有更改,恕不另行通知
Product specifications and technical parameters are subject to change without notice

*设计工况:进水温度T1=37℃,出水温度T2=32℃,水温降TS=5℃

*湿球温度WBT=27℃,大气压力P=99400Pa

*Design condition:water in temperature T1=37℃,water out temperature T2=32℃,water in/out temperature difference TS=5℃                                                                        *Wet ball temperature WBT=27℃,Air pressure P=99400Pa
